Discontinued categories
If I Could Turn Back Time...
...once sang Cher. But we cannot do it either.
Therefore a lot of products have been replaced by innovative types with better features, or the production of whole product categories has been terminated due to their obsolescence.
Since its founding in 1994, TEDIA has been producing a series of DAQ ISA cards and a wide range of accessories.
This series has grown by other special types for signal preprocessing (e.g. programmable antialiasing filter card), counter cards, high-speed sampling card (PCX-1230 card was equipped with three 12-bit ADC with sampling frequency up to 10 MHz), etc.
A separate part of ISA card portfolio represented communication cards with isolated RS-422/485 interfaces.

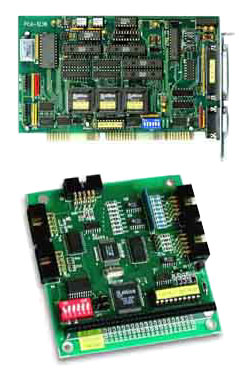

Several years later, the ISA DAQ card portfolio was followed by brand new PC/104 DAQ modules for standard applications, and also custom-made types developed for installation in special equipment.
Note: Do you have questions regarding the ISA cards or PC/104 modules? Feel free to contact our technical support.
Multifunctional ISA cards (produced in 1998 and later)
| Type | AIN | ADC | Buffer | Isol. | DAC | CNT | DIO |
|---|---|---|---|---|---|---|---|
| PCA-1208AL | 8/32x S.E. | 12-bit, 50kHz | - - - | - - - | - - - | 1 | 8+8 |
| PCA-1208AS | 8/32x S.E. | 12-bit, 50kHz | - - - | - - - | 2x 12-bit | 1 | 8+8 |
| PCA-1218A | 8/32x S.E. | 12-bit, 15kHz | - - - | 1kVDC | - - - | 1 | 8+8 |
| PCA-1228L | 8/32x S.E. | 12-bit, 80kHz | - - - | - - - | - - - | - - - | 8+8 |
| PCA-1228M | 8/32x S.E. | 12-bit, 80kHz | FIFO | - - - | 1x 12-bit | - - - | 8+8 |
| PCA-1238L | 8x S.E. | 12-bit, 250kHz | FIFO | - - - | - - - | - - - | 8+8 |
| PCA-1238M | 8x S.E. | 12-bit, 250kHz | FIFO | - - - | 1x 12-bit | - - - | 8+8 |
| PCA-1238S | 8x S.E. | 12-bit, 250kHz | FIFO | - - - | 2x 8-bit | - - - | 8+8 |
| PCA-1248M | 8x S.E. | 12-bit, 800kHz | RAM | - - - | 1x 8-bit | - - - | 8+8 |
| PCA-1408AL | 8/32x S.E. | 14-bit, 50kHz | - - - | - - - | - - - | 1 | 8+8 |
| PCA-1408AS | 8/32x S.E. | 14-bit, 50kHz | - - - | - - - | 2x 12-bit | 1 | 8+8 |
| PCA-1608AL XM-1608 |
4x DIF. | 16-bit, 4x2kHz | FIFO | 500VDC | - - - | - - - | 8+8 |
| PCA-1608AM 2x XM-1608 |
8x DIF. | 16-bit, 8x2kHz | FIFO | 500VDC | - - - | - - - | 8+8 |
Other types of ISA cards (produced in 1998 and later)
| Type | Description |
|---|---|
| PCA-1288 | special card series (8x AIN, 8x AOUT, 4x CNT, 8+8 DIO) |
| PCD-4848A | DIO port & counters card series |
| PCF-810 | programmable antialiasing filters card |
| PCG-1030 | signal generator cards (based on DDS systhesis) |
| PCT-2403 | quadrature encoder & counters card series |
| PCT-3212 | programmable counters card series |
| PCX-1230 | high-speed DAQ card (three 12-bit ADC, 10 MHz sampling frequency) |
Communication ISA cards (produced in 1998 and later)
| Type | Nr. of ports | Type of ports | Isol. | Controller | Bus |
|---|---|---|---|---|---|
| PCI-681 | 1 | RS-422/485 | 1kVDC | 16C550 | ISA |
| PCI-681H | 1 | RS-422/485 | 1kVDC | 16C750 | ISA |
| PCI-685 | 2 | RS-422/485 | 1kVDC | 16C550 | ISA |
| PCI-685H | 2 | RS-422/485 | 1kVDC | 16C750 | ISA |
Multifunctional PC/104 modules (produced in 1998 and later)
| Type | AIN | AOUT | CNT | DIN | DOUT |
|---|---|---|---|---|---|
| PCA-1201 | - - - | 1x 12-bit | - - - | 16x TTL | 16x TTL |
| PCA-1201N | - - - | 1x 12-bit | - - - | 16x TTL | 16x NPN |
| PCA-1282 | 8x 12-bit | 2x 12-bit | 4x 16/32-bit | 8x TTL | 8x TTL |
| PCA-1601 | - - - | 1x 16-bit isolated |
- - - | 8x TTL | - - - |
| PCA-1604 XM-1604 |
4x 16-bit | - - - | - - - | - - - | - - - |
| PCD-0808 | - - - | - - - | - - - | 8x isolated | 8x relays |
| PCD-1616 | - - - | - - - | - - - | 16x TTL | 16x TTL |
| PCD-1616N | - - - | - - - | - - - | 16x TTL | 16x NPN |
| PCT-2401 | - - - | - - - | 1x 24-bit (IRC) | 8x TTL | 8x TTL |
| PCT-2401N | - - - | - - - | 1x 24-bit (IRC) | 8x TTL | 8x NPN |
