DAQ PCI/PCI cards - terminal board

OPT-09

The OPT-09 is a standard terminal board fitted with one D-Sub 9 connector (female), ten screw terminals (9 signals + cable shield) and two auxiliary terminals for connecting an external power supply.

The free component positions allow to insert a serial resistor into each signal, create voltage dividers or filters, connect signal to an external power supply via resistor etc.

A plastic housing, suitable for mounting on the 35 mm DIN rail, is optionally supplied under the type designation DIN-09.

Board dimensions: approx. 72x66 mm
Board weight: approx. 50 g

Note: The terminal board is packed in a plastic bag, alternatively can be delivered in a cardboard box approx. 180x130x40 mm (weight including the board approx. 100 g).

OPT-25A

The OPT-25A is a terminal board designed directly for connecting analog inputs and outputs of DAQ cards. It is fitted with one D-Sub 25 connector (female) and 28 screw terminals (analog inputs and outputs signals + cable shield).

The free component positions allow to insert a serial resistor into each signal, create voltage dividers, current shunts filters etc.

A plastic housing, suitable for mounting on the 35 mm DIN rail, is optionally supplied under the type designation DIN-25.

Board dimensions: approx. 72x88 mm
Board weight: approx. 90 g

Note: The terminal board is packed in a plastic bag, alternatively can be delivered in a cardboard box approx. 180x130x40 mm (weight including the board approx. 140 g).

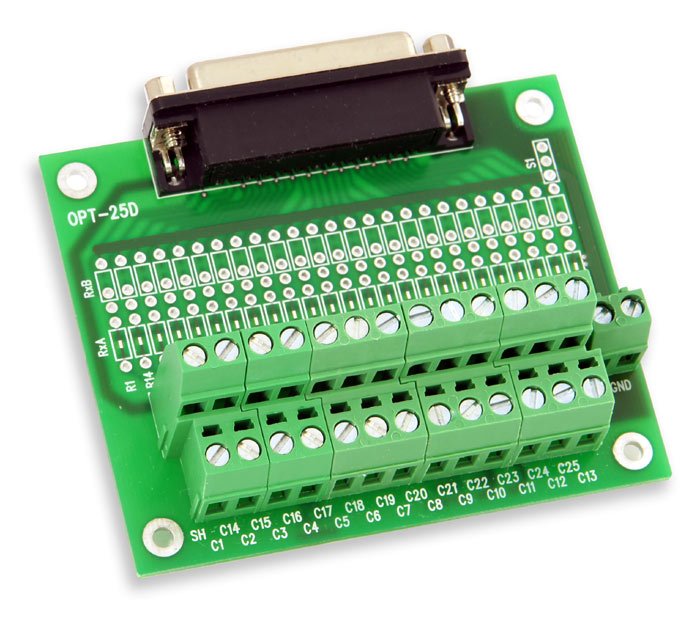

OPT-25D

The OPT-25D is a standard terminal board fitted with one D-Sub 25 connector (female), 26 screw terminals (25 signals + cable shield) and two auxiliary terminals for connecting an external power supply.

The free component positions allow to insert a serial resistor into each signal, create voltage dividers or filters, connect signal to an external power supply via resistor etc.

A plastic housing, suitable for mounting on the 35 mm DIN rail, is optionally supplied under the type designation DIN-25

Board dimensions: approx. 72x88 mm
Board weight: approx. 90 g

Note: The terminal board is packed in a plastic bag, alternatively can be delivered in a cardboard box approx. 180x130x40 mm (weight including the board approx. 140 g).
